Patient Simulator Mobile App

ChallengeLine separator

Develop an interface, to configure and test the Bed side monitors with a mobile App

  • Easy to operate with little or no prior training
  • Clear color coding for distinguishing the parameters and setting the limit values

 My RoleLine separator

  • Interview the Lab technicians to understand the problem and derive the use cases.
  • Produce paper and click-through user interface design prototypes using Axure RP.
  • Create user persona as per the user requirements.
  • Manage user evaluations (usability testing), and also produce all required media resources (icons, diagrams). Assist software engineers with UI implementation (screen layouts).

SolutionLine separator

To fulfill the easy to operate requirement a color touch screen user interface was developed which is comprised of menu selection screens and color coding for making the user comfortable in selecting the required parameter.

Paper Prototype

  • Phase 1 – Problem elaboration
Patient Simulator Initial Discussion
Patient Simulator Initial Discussion

Mockup scenario of the Lab technician and the simulator.

  • Phase 2 – Prototype solution to the problem
Patient Simulator prototype
Patient Simulator prototype

Wire FrameLine separator

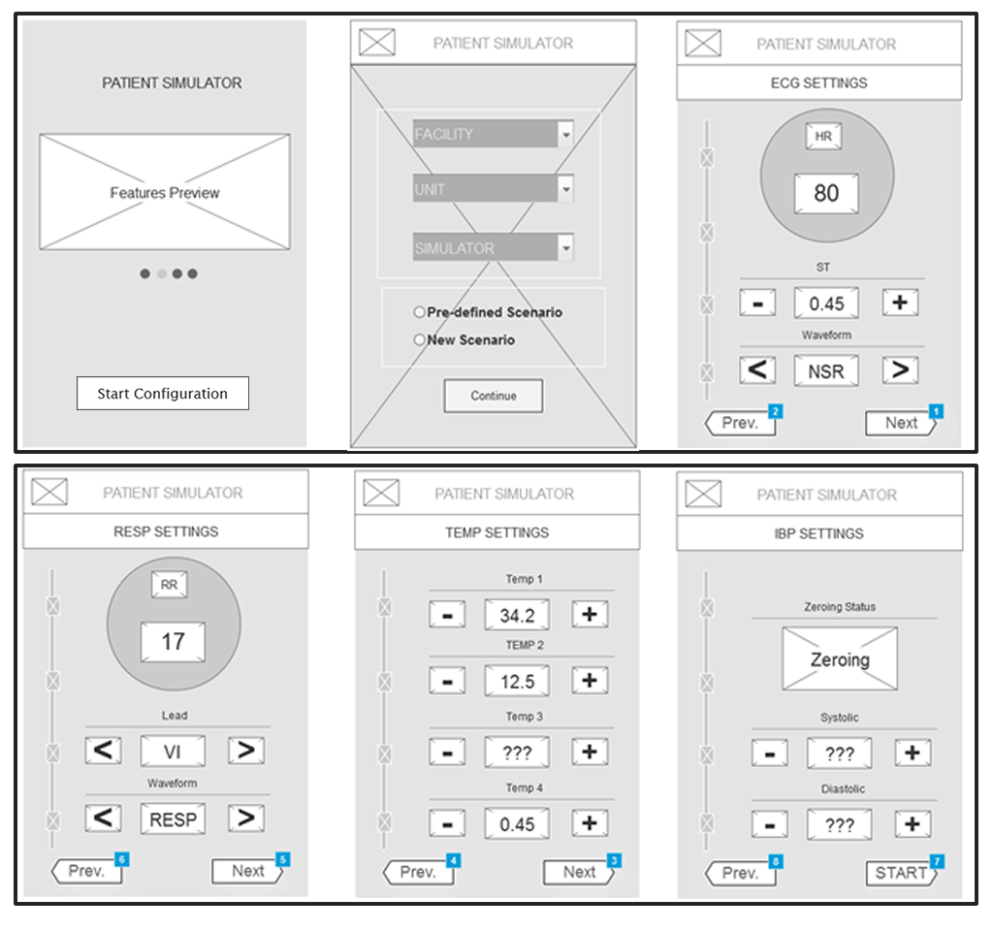

Wire Frames for all screens
Wire Frames for all screens
Final DesignLine separator

The Lab Technicians can now Start/Stop the test remotely even when performing other tests in another lab.

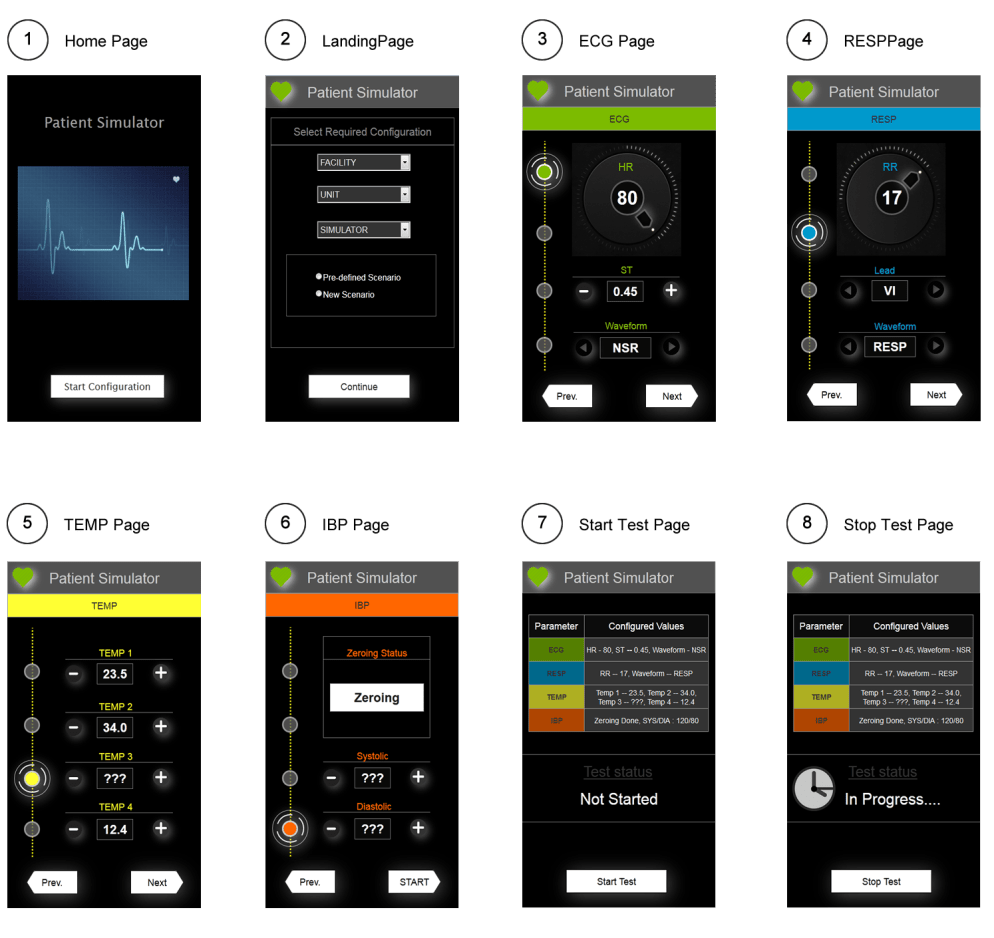

Patient Simulator Screen Flow
Patient Simulator Screen Flow

Tool set  .  Line separator
  1. Axure Rp
  2. Balsamiq
